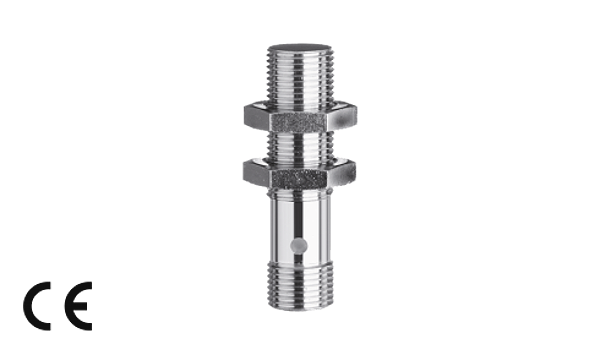

Di-soric 200465
DCCK 12 M 06 PSK-IBSL
Inductive Proximity Switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Metal plug. Integrated amplifier. Short-circuit protection. Starting pulse suppression. LED
Downloads
Technical parameters
| Operating principle: | Inductive |
| Evaluation: | digital |
| Size: | M12 x 1 (thread) |
| Design: | screw |
| Mounting: | quasi-flush |
| Characteristics: | extremely high operating distance |
| Operating distance: | 6 mm |
| Standardized measuring plate: | 18 x 18 x 1 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 10 mA |
| Switching output: | pnp, 200 mA, NO |
| Switching hysteresis: | 5 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 800 Hz |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | brass nickel plated |
| Connection: | Connector, M12 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
