Product
Contrinex
YBB-14S4-1600-G012
630-000-135
Request a Quote
Image copyright: Contrinex

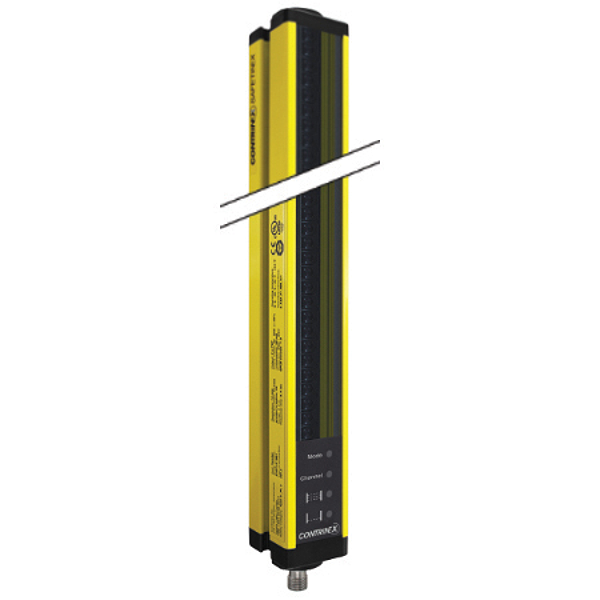

Contrinex YBB-14S4-1600-G012
630-000-135
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Product type: | Light curtain |
| Safety level: | Cat. 4, PL e, Type 4 |
| Housing size [mm]: | 42 x 48 |
| Resolution: | 14 mm (finger) |
| Protective height: | 1561 mm |
| Total height: | 1670 mm |
| Operating range: | 0.25...3.5 mm |
| Polarity: | PNP |
| Response time: | 40.4 ms |
| Supply voltage: | 24 VDC ± 20 % |
| Temperature range: | -35...60 °C |
| Enclosure rating (IP): | IP 65, IP 67 |
| Sender wavelength: | IR 950 nm |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
