Product
Contrinex
RLS-1301-230
720-100-113
Request a Quote
Image copyright: Contrinex

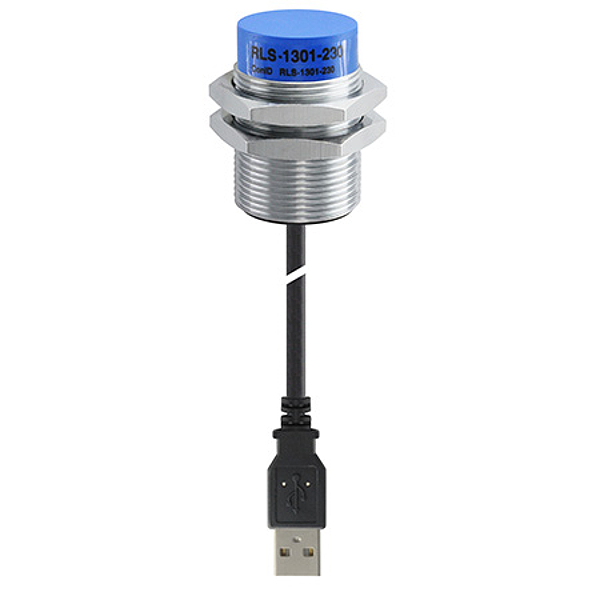

Contrinex RLS-1301-230
720-100-113
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Product type: | Read/write module |
| Operating frequency: | 31.25 kHz |
| Standard: | Proprietary |
| Read/Write distance max.: | 41 mm |
| Housing size [mm]: | M30 |
| Housing material: | Chrome-plated brass |
| Mounting: | non-embedabble |
| Supply voltage: | 5 VDC/USB |
| Interface: | ContriNET USB x RFID |
| Connection: | USB A male |
| Temperature range: | -25...70 °C |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
