Product
Contrinex
LLK-1180-001
620-200-533
Request a Quote
Image copyright: Contrinex

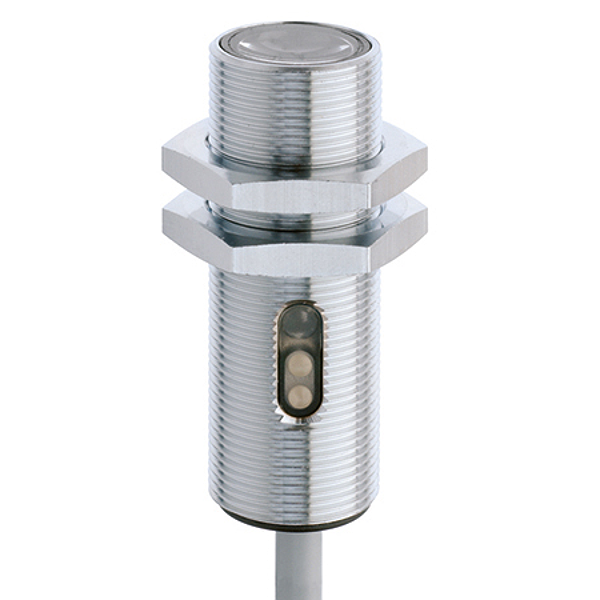

Contrinex LLK-1180-001
620-200-533
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating principle: | Through-beam |
| Light source: | LED, red 660 nm |
| Housing size [mm]: | M18 |
| Sensitivity adjustment: | No |
| Polarity: | NPN |
| Output: | Light-on + Dark-on |
| Interface: | Standard output |
| Connection: | PVC, 2 m, 4 wire |
| Supply voltage: | 10...36 VDC |
| Switching frequency max. [Hz]: | 1000 |
| Housing material: | Chrome-plated brass |
| Temperature range: | -25...55 °C |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
