Contrinex
LHR-C12PA-PLV-303
628-000-680
Request a Quote

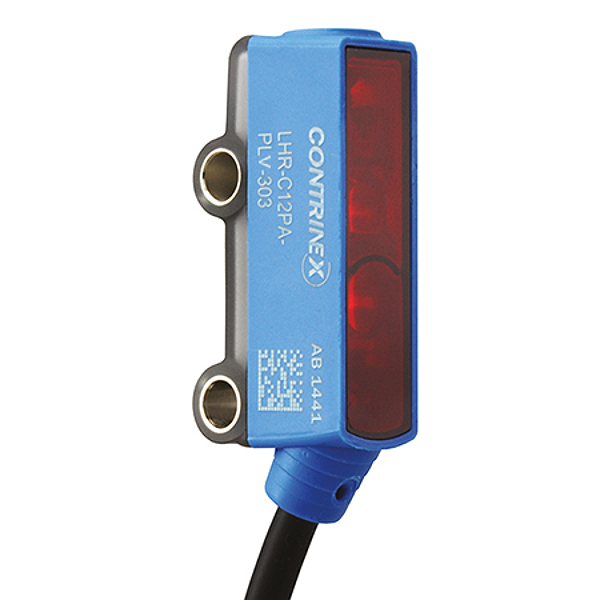

Image copyright: Contrinex
Contrinex LHR-C12PA-PLV-303
628-000-680
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating principle: | Background suppression |
| Sensing range typ. Max.: | 2...120 mm |
| Light source: | Pinpoint LED, red 640 nm |
| Housing size [mm]: | 13 x 27 (C12) |
| Sensitivity adjustment: | 3-turn potentiometer |
| Polarity: | PNP |
| Output: | Light-on |
| Interface: | Standard output |
| Connection: | PVC, 0.2 m + M8 3-pin |
| Supply voltage: | 10...30 VDC |
| Switching frequency max. [Hz]: | 800 |
| Housing material: | ABS |
| Temperature range: | -20...50 °C |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
