Product
Contrinex
LFS-3065-101
620-000-903
Request a Quote
Image copyright: Contrinex

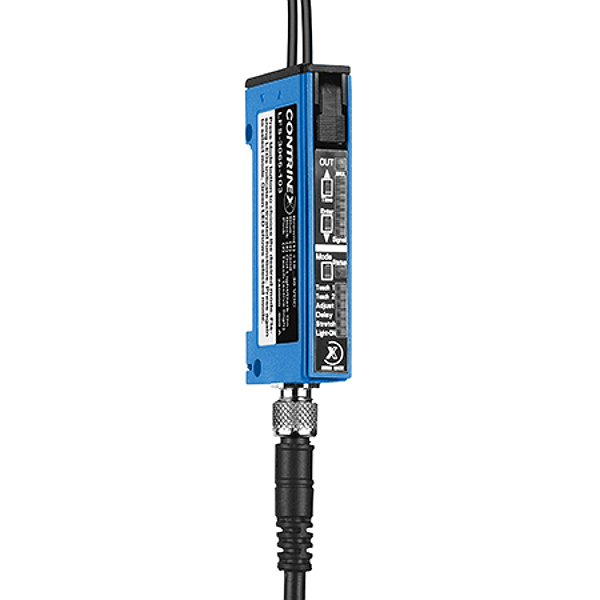

Contrinex LFS-3065-101
620-000-903
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating principle: | Fiber amplifier |
| Light source: | LED, red 680 nm |
| Housing size [mm]: | 31 x 60 |
| Sensitivity adjustment: | Teach-in |
| Polarity: | NPN |
| Output: | Light-on/Dark-on + Teach input |
| Interface: | Standard output |
| Connection: | M8 4-pin |
| Supply voltage: | 10...30 VDC |
| Switching frequency max. [Hz]: | 1500 |
| Housing material: | PBTP (Crastin) |
| Temperature range: | -25...55 °C |
| Enclosure rating (IP): | IP 64 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
