Product
Contrinex
DW-HD-611-M30-310
220-220-788
Request a Quote
Image copyright: Contrinex

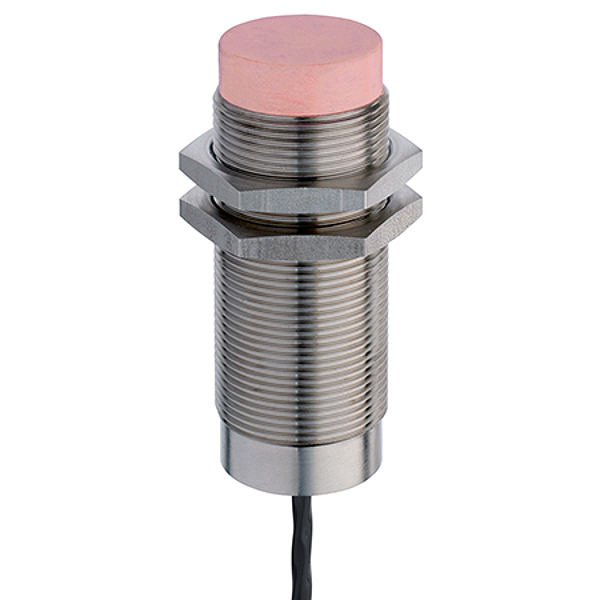

Contrinex DW-HD-611-M30-310
220-220-788
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 15 mm |
| Housing size [mm]: | M30 |
| Mounting: | Non-embeddable |
| Polarity: | NPN |
| Output: | Normally open (NO) |
| Interface: | Standard output |
| Connection: | Teflon, 2 m, 3 wire |
| Supply voltage: | 10…30 VDC |
| Switching frequency max. [Hz]: | 200 |
| Housing material: | Stainless-steel V2A |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
