Product
Contrinex
DW-DD-615-M12-120
220-820-055
Request a Quote
Image copyright: Contrinex

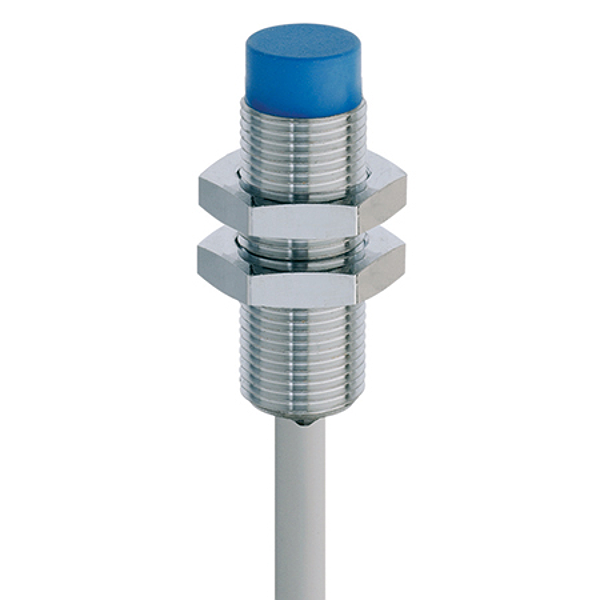

Contrinex DW-DD-615-M12-120
220-820-055
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 4 mm |
| Housing size [mm]: | M12 |
| Mounting: | Non-embeddable |
| Polarity: | 2-wire |
| Output: | Normally open (NO) |
| Interface: | Standard output |
| Connection: | PVC, 2 m, 2 wire |
| Supply voltage: | 10…65 VDC |
| Switching frequency max. [Hz]: | 2500 |
| Housing material: | Chrome-plated brass |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
