Product
Contrinex
DW-AS-634-M12-120
320-820-918
Request a Quote
Image copyright: Contrinex

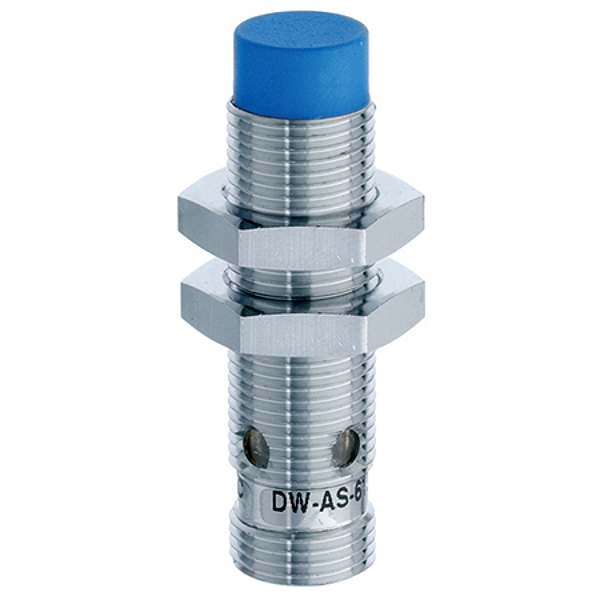

Contrinex DW-AS-634-M12-120
320-820-918
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 8 mm |
| Housing size [mm]: | M12 |
| Mounting: | Non-embeddable |
| Polarity: | PNP |
| Output: | Normally closed (NC) |
| Interface: | Standard output |
| Connection: | M12 4-pin |
| Supply voltage: | 10…30 VDC |
| Switching frequency max. [Hz]: | 1400 |
| Housing material: | Nickel-plated brass |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
