Product
Contrinex
DW-AS-623-065
320-620-046
Request a Quote
Image copyright: Contrinex

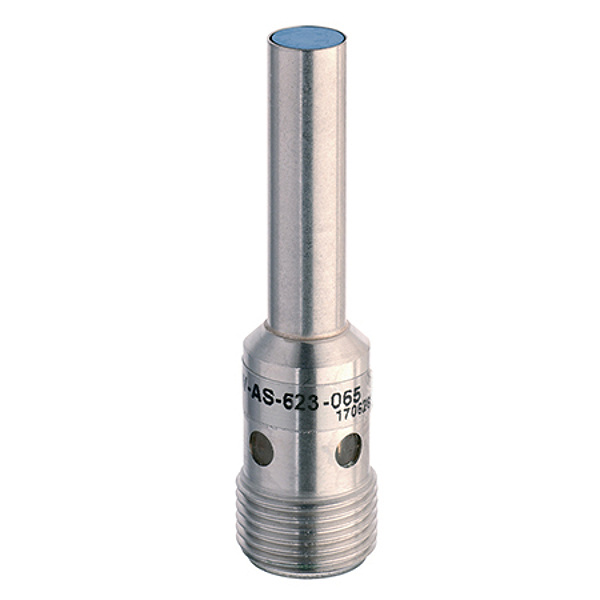

Contrinex DW-AS-623-065
320-620-046
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 2 mm |
| Housing size [mm]: | Ø 6.5 |
| Mounting: | Embeddable |
| Polarity: | PNP |
| Output: | Normally open (NO) |
| Interface: | IO-Link |
| Connection: | M12 4-pin |
| Supply voltage: | 10…30 VDC |
| Switching frequency max. [Hz]: | 5000 |
| Housing material: | Stainless-steel V2A |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
