Contrinex
DW-AS-617-M30-069
220-820-917
Request a Quote

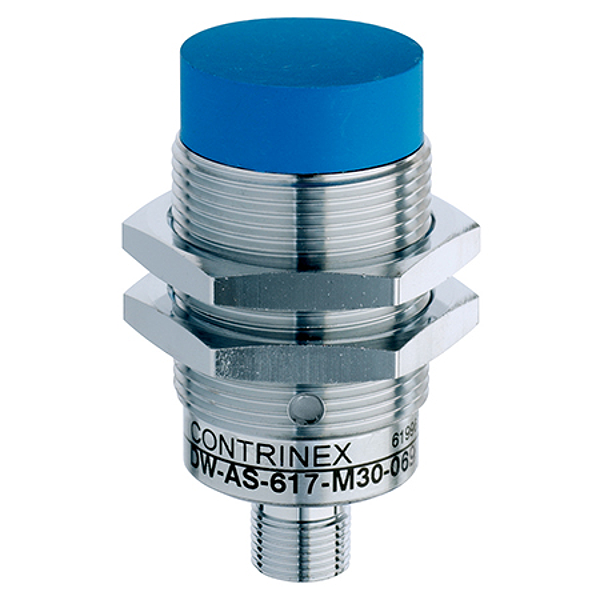

Image copyright: Contrinex
Contrinex DW-AS-617-M30-069
220-820-917
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 15 mm |
| Housing size [mm]: | M30 |
| Mounting: | Non-embeddable |
| Polarity: | 2-wire |
| Output: | Normally open (NO) |
| Interface: | Standard output |
| Connection: | UNF 1/2' 3-pin |
| Supply voltage: | 20…265/10...320 VAC/VDC |
| Switching frequency max. [Hz]: | 25 |
| Housing material: | Chrome-plated brass |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
