Product
Contrinex
DW-AD-604-04E
320-920-094
Request a Quote

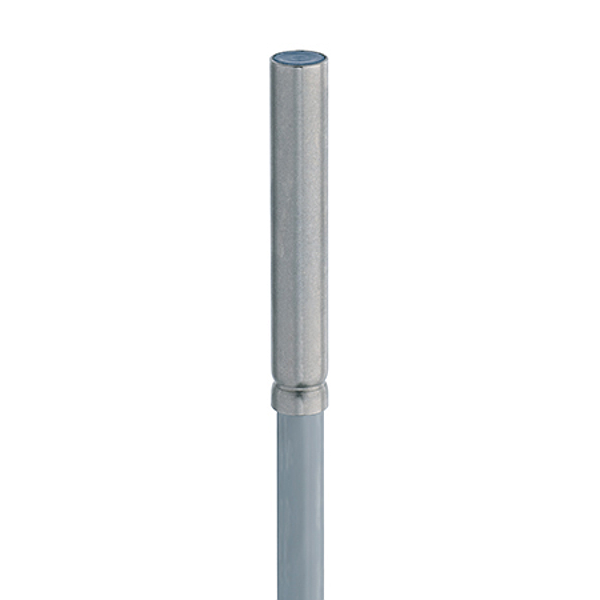

Image copyright: Contrinex
Contrinex DW-AD-604-04E
320-920-094
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 0.6 mm |
| Housing size [mm]: | Ø 4 |
| Mounting: | Embeddable |
| Polarity: | PNP |
| Output: | Normally closed (NC) |
| Interface: | Standard output |
| Connection: | PUR, 2 m, 3 wire |
| Supply voltage: | 10…30 VDC |
| Switching frequency max. [Hz]: | 5000 |
| Housing material: | Stainless-steel V2A |
| Enclosure rating (IP): | IP 68 |
| Operating pressure [bar]: | ? 20 bar |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
