Contrinex
DW-AD-503-C8
320-020-847
Request a Quote
Image copyright: Contrinex

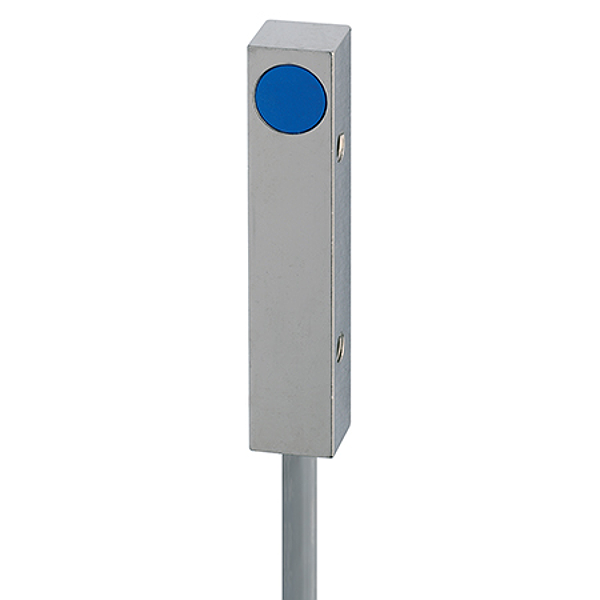

Contrinex DW-AD-503-C8
320-020-847
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 3 mm |
| Housing size [mm]: | 8 x 8 (C8) |
| Mounting: | Quasi-embeddable |
| Polarity: | PNP |
| Output: | Normally open (NO) |
| Interface: | Standard output |
| Connection: | PVC, 2 m, 3 wire |
| Supply voltage: | 10…30 VDC |
| Switching frequency max. [Hz]: | 1000 |
| Housing material: | Chrome-plated zamak |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
