Product
Contrinex
DTR-C23PB-TMS-139
628-000-693
Request a Quote

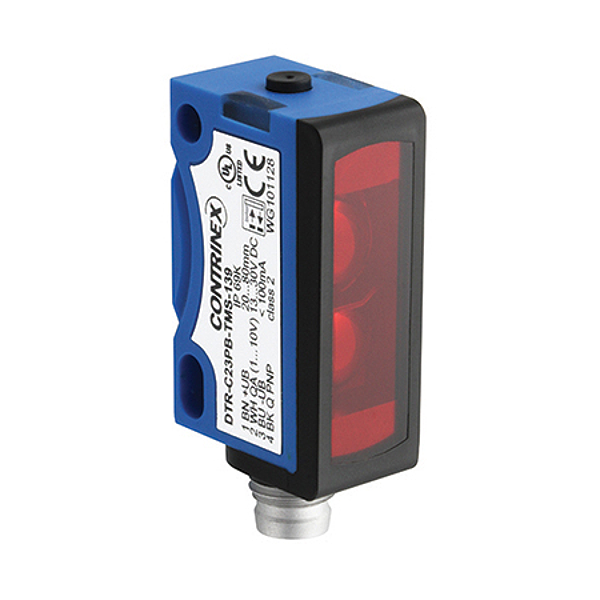

Image copyright: Contrinex
Contrinex DTR-C23PB-TMS-139
628-000-693
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating principle: | Distance diffuse |
| Repeatability: | < 0.4 mm |
| Linearity: | ± 0.4 mm |
| Light source: | LED, red 632 nm |
| Housing size [mm]: | 20 x 34 (C23) |
| Sensitivity adjustment: | Teach button |
| Polarity: | PNP |
| Output: | Light-on/Dark-on + 1...10 V |
| Interface: | Standard output |
| Connection: | M8 4-pin |
| Supply voltage: | 13...30 VDC |
| Switching frequency max. [Hz]: | 1000 |
| Housing material: | ABS |
| Temperature range: | -20...60 °C |
| Enclosure rating (IP): | IP 67/IP 69K |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
