Product
Contrinex
DGI-08A-0480-NMS-107
605-000-736
Request a Quote
Image copyright: Contrinex

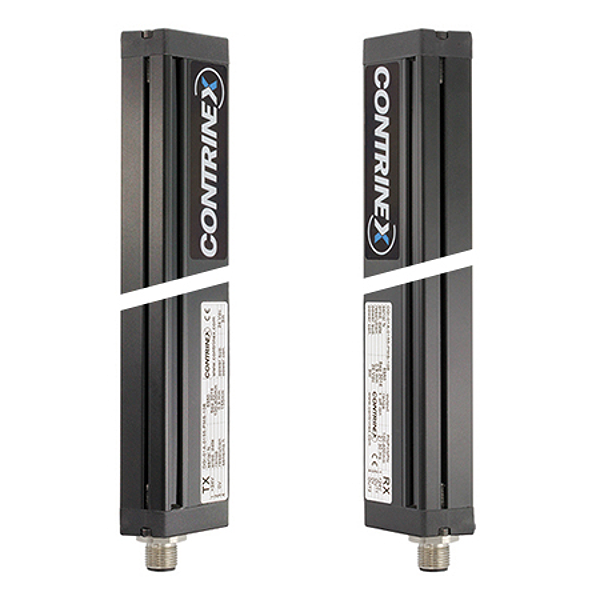

Contrinex DGI-08A-0480-NMS-107
605-000-736
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating principle: | Detection grid |
| Sensing range typ. Max.: | 300…4000 mm |
| Light source: | Led, infrared |
| Housing size [mm]: | 40 x 20.5 (Light Grid) |
| Light grid height [mm]: | 500 mm |
| Sensitivity adjustment: | No |
| Polarity: | Push-pull |
| Output: | Light-on + Dark-on |
| Interface: | Standard output |
| Connection: | M12 4-pin |
| Supply voltage: | 19.228.8 VDC |
| Housing material: | Aluminium |
| Temperature range: | -5...50 °C |
| Enclosure rating (IP): | IP 65 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
