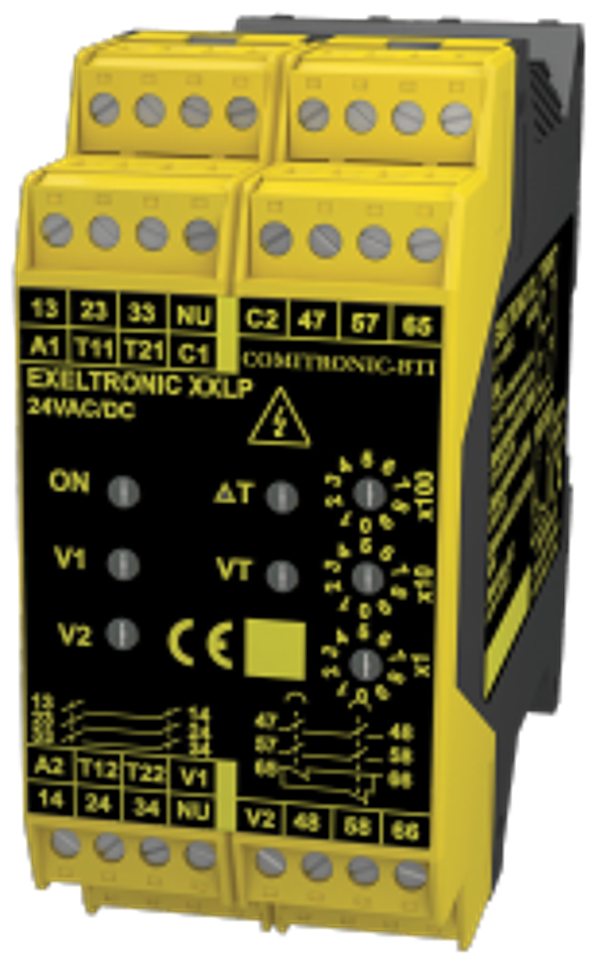

Comitronic-BTI EXELTRONIC/XXL
Timed interlocking control for thermal inertia or zero speed machines with high accuracy time control.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| EXELTRONIC XXL: | Stop button control with 2 NC contacts Self control of this button Compatible with ACOTOM® Process Safety Sensors 3 NO instantaneous for control heater 2 NO + 1 NC delayed for interlocking Adjustable time with thumbwheels 1 to 999s Power supply 24Vac / dc Monitoring on 4 leds 45 mm format Security Category Cat 4 to 954-1 EXELTRONIC XXLP Stop command with 2 NC contacts Self-check entries Compatible with ACOTOM® Process Safety Sensors Adjustable time with thumbwheels 1 to 999s Power supply 24Vac / dc Monitoring on 4 leds 2NO delayed for power cut 3NO instantaneous for drive control 1NF delayed for interlocking control 45 mm format Security Category Cat 4 to 954-1 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
