Product
Comitronic-BTI
AMX5CK
Request a Quote
Image copyright: Comitronic-BTI

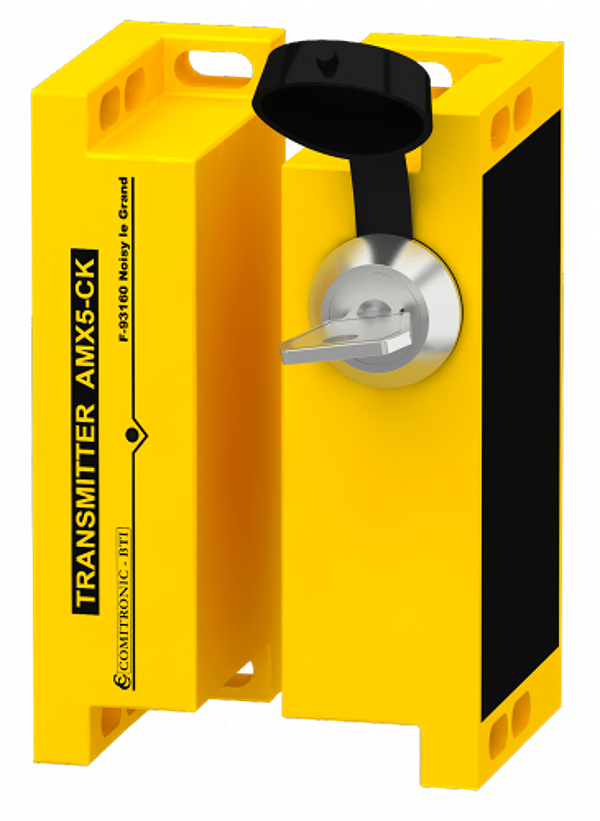

Comitronic-BTI AMX5CK
Position control for doors / casings on hazardous machinery. Manages person entry in hazard zones using an electrical locking key. Contactless encoded electronic sensor with relay. Category 3 total safety management without an external controller. Electrical locking key with position contact
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Level of performance without an external controller: | PL = d Level of performance with AWAX controller up to PL = e Safety category without an external controller 3 Safety Integrity Level SIL 2 Cycle before dangerous failure B10d = 2,000,000 at 2A Max. activation distance 10 mm, 2 mm hysteresis Safety contacts/diagnostics 2 x NO 2A/48V redundant / 2xPNP 250mA auxiliary (open/closed door and locking/unlocking of contacts) Detection encoding mono-code inviolable Note two-color LED indicates the key locking position; white LED indicates code recognition Reset automatic Attachment 4 tamper-proof M4 screws (optional ref BH4) Mounting position 2 (double wall brackets) Material Polycarbonate Electrical connection M12 metal base Water resistance IP 65 Temperature -15°C to +60°C Marking screen printed + serial no. for traceability Example of application Key free = sensor disabled. AUX2 output sends voltage (e.g. Unlock command). The operator takes the key and enters the zone Key trapped = sensor activated. AUX2 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
