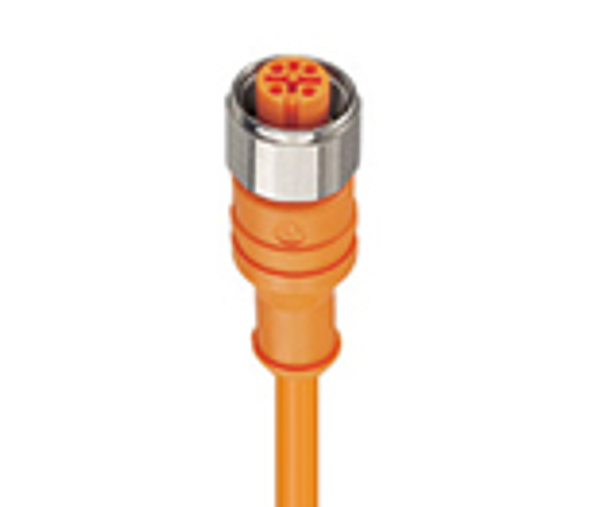

Belden 13287
PRKT 4-07/10 M
PRKT 4-07 - M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, orange body, 230 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Actuator/sensor cordset, single-ended, M12, 4-poles, female straight connector, internal threads with threaded joint and molded cable, hexagon screw in stainless steel.". M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, orange body, 230 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²
Downloads
Technical parameters
| brown: | white |
| Product Family:: | Sensor / Actuator Connectors |
| Product Sub Family:: | M12 F&B (PVC) |
| Brand:: | Lumberg Automation |
| Connector Type:: | Cordset, single ended |
| Type of Contact / Gender:: | Female |
| Connector Design:: | Straight |
| Number of Pins:: | 4 |
| Coding:: | A |
| Shielding:: | Unshielded |
| Attachment Type:: | Coupling Nut |
| Rated Voltage:: | 250 V |
| Rated Impulse Voltage:: | 2.5 kV |
| Operating Voltage:: | 230 V AC/DC |
| Rated Current*:: | 4 A |
| Contact Resistance:: | ≤ 10 mOhm |
| Insulation Resistance:: | ˃ 10^9 Ohm |
| Mating Cycles:: | ≤ 100 |
| Ambient Temperature (Operation)*:: | - 25 °C - + 50 °C |
| Protection Degree / IP Rating**:: | IP65, IP67 |
| Design Standard:: | IEC 61076-2-101 |
| Pollution Degree:: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category:: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material:: | CuSn |
| Contact Plating:: | Cu/Au |
| Contact Bearer Material:: | PVC |
| Contact Bearer Color:: | Orange |
| Molded Body Material:: | PVC |
| Molded Body Color:: | Orange |
| Attachment Material:: | Stainless Steel |
| O-Ring Material:: | EPDM, black |
| Fastening Torque (Attachment):: | M 12x1: (50-60) Ncm, hand-tight |
| Cable Number:: | 007 |
| Conductor Size:: | 0.25 mm² |
| Number of Wires:: | 4 |
| Minimal Bending Radius (Fixed Inst):: | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst):: | ˃ 10 x D |
| Cycles (Bending):: | ˃ 1 M |
| Conductor material:: | Cu |
| Cable Jacket Material:: | PVC |
| Cable Jacket Color:: | orange |
| Cable Diameter D:: | ø 5.0 ± 0.2 mm |
| Wire Insulation Material:: | PVC |
| Insulated Wire Diameter:: | ø 1.35 mm |
| Ambient Temperature (Fixed Installation):: | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation):: | + 5 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst):: | + 5 °C - + 60 °C |
| UL Cable Type:: | AWM: 2464 |
| Flammability Class (Cable Jacket):: | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1 |
| Cable Characteristics:: | Free of lacquer wetting disturbing substances; Exclusion of silicone |
| RoHS Compliant:: | yes |
| Oil Resistance:: | Good chemical and oil resistance |
| Note Derating:: | Notice derating |
| Protection Degree / IP Rating Note:: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note:: | Do not connect or disconnect under load. |
| 53259: | PRKT 4-07/2 M |
| 28336: | PRKT 4-07/5 M |
| 13287: | PRKT 4-07/10 M |
| 53261: | PRKT 4-07/15 M |
| 75520: | PRKT 4-07/20 M |
| 18031: | PRKT 4-07/25 M |
| 86982: | PRKT 4-07/35 M |
| 934637060: | PRKT 4-07/40 M |
| 65558: | PRKT 4-07/50 M |
Logistic parameters
| ECCN: | |
| Country of Origin: | CZ |
| EAN: | |
| Weight: | 0.37 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
