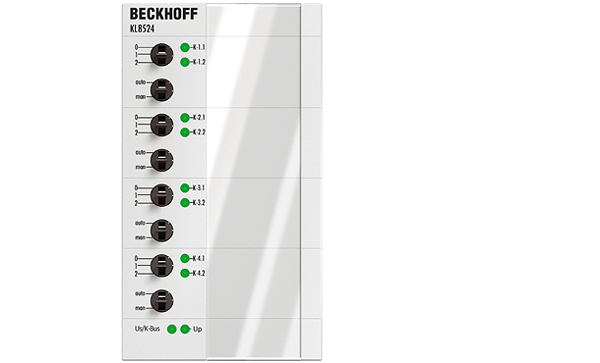

Beckhoff KL8524
KL8524 | 4 x 2-channel digital output module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL8524 is a 4 x 2-channel digital output module, equipped with two switches. The first is for switching between manual and automatic operation, while the second is used to set a 2-stage output. It is possible to specify when and how the two outputs are switched. The status is indicated by a bicolour LED in green and yellow. The switching positions are readable via the PLC.
Technical parameters
| Number of outputs: | 2 x 4 |
| Output current: | 0.5 A (∑ 2 A) |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Current consumpt. K-bus: | 40 mA |
| Power supply: | 24 V connection |
| Bus interface: | K-bus connection IN/OUT |
| I/O connections: | flat-ribbon cable connection, 20-pin, shielded |
| Switch settings: | auto/manual, mode 0/1/2 |
| Diagnostics LED: | bicolor LEDs, green and yellow |
| Special features: | State of the switch can be read by the controller. |
| Weight: | approx. 160 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE |
