KL3448
Beckhoff KL3448
KL3448 | 8-channel analog input terminal 0…20 mA
Description

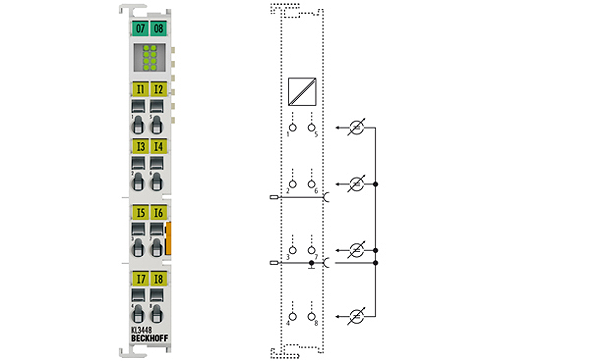

The KL3444 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitised to a resolution of 12 bits and is transmitted, in an electrically isolated form, to the higher-level automation device. The KL3448 combines eight channels in one housing and is particularly suitable for space-saving installation in control cabinets. The use of single conductor connection technology enables the connection of multi-channel sensor technology with minimum space requirements. The reference ground for all inputs is the 0 V power contact. The power contacts are connected through. Overload is detected. The terminal status is relayed to the controller via the K-bus. The LEDs indicate the data exchange with the Bus Coupler as well as overload or wire breakage.
Technical parameters
| Number of inputs: | 8 |
| Power supply: | via the K-bus |
| Signal current: | 0…20 mA |
| Technology: | single-ended |
| Internal resistance: | < 85 Ω |
| Common-mode voltage UCM: | – |
| Conversion time: | ~ 4 ms |
| Resolution: | 12 bit |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Surge voltage resistance: | 30 V DC |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption K-bus: | typ. 105 mA |
| Bit width in the process image: | input: 8 x 16 bit data (8 x 8 bit control/status optional) |
| Configuration: | no address or configuration setting |
| Special features: | high packing density |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals/markings: | CE, UL, ATEX, GL |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
