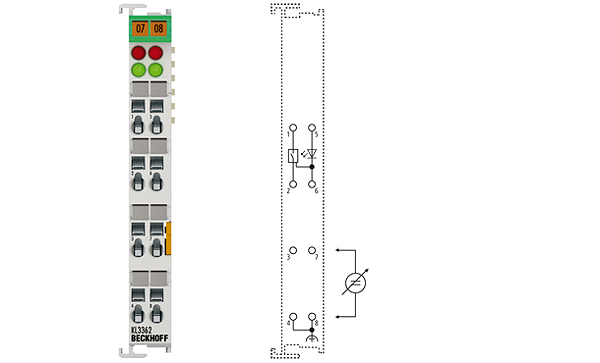

Beckhoff KL3362
KL3362 | 2-channel oscilloscope terminal -10…+10 V
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL3362 analog input terminal makes it possible to perform non-central preliminary processing of analog values. The input values are digitised with a 14 bit resolution and written into an internal memory. An efficient processor can pre-process the values. Limit values and maximum and minimum values can be determined or monitored. The KL3362 can also carry out envelope curve monitoring. A trigger starts the cyclical processes. The result or all the measured values are transported to the higher-level automation unit.
Technical parameters
| Number of inputs: | 2 analog, 1 trigger |
| Power supply: | via the K-bus |
| Signal voltage: | -10…+10 V |
| Technology: | high-speed data logger |
| Internal resistance: | > 500 kΩ |
| Internal resistance E1-GND, E2-GND: | > 500 kΩ |
| Supply voltage: | – |
| Conversion time: | < 100 µs, configurable (10 µs with fast sampling mode) |
| Resolution: | 14 bit + sign |
| Measuring error: | < ±0.5 % (relative to full scale value) |
| Internal memory: | 32 kbytes |
| Trigger: | configurable |
| Current consumption power contacts: | – (no power contacts) |
| Current consumpt. K-bus: | typ. 120 mA |
| Bit width in the process image: | input/output: 2 x 16 bit data (2 x 8 bit control/status per channel) |
| Special features: | high-speed analog analysis |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
