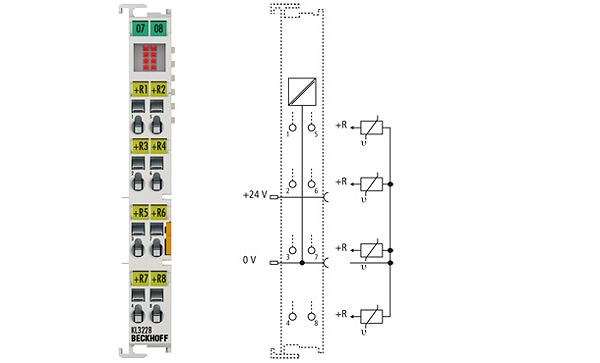

Beckhoff KL3228
KL3228 | 8-channel input terminal PT1000, Ni1000 (RTD)
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL3228 analog input terminal enables connection of eight resistance sensors. The Bus Terminal’s circuitry can handle sensors using the 1-wire technique. Linearisation over the full temperature range is realised with the aid of a microprocessor. The temperature range can be selected freely. The Bus Terminal’s standard settings are: resolution 0.1 °C within the temperature range of Ni1000 sensors. The error LEDs indicate sensor faults (e.g. a broken wire).
Technical parameters
| Number of inputs: | 8 |
| Power supply: | via the K-bus |
| Technology: | 1-wire |
| Sensor types: | PT1000, Ni1000 |
| Connection method: | 1-wire |
| Measuring range: | -50…+150 °C (PT sensors); -50…+150 °C (Ni sensors) |
| Conversion time: | ~ 1 s |
| Measuring current: | ~ 0.5 mA typ. |
| Resolution: | 0.1 °C per digit |
| Measuring error: | ~ ±1 °C, depending on wiring |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumpt. K-bus: | typ. 85 mA |
| Bit width in the process image: | input: 8 x 16 bit data (8 x 8 bit control/status optional) |
| Configuration: | no address setting, configuration via Bus Coupler or controller |
| Special features: | open-circuit recognition |
| Weight: | approx. 75 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
