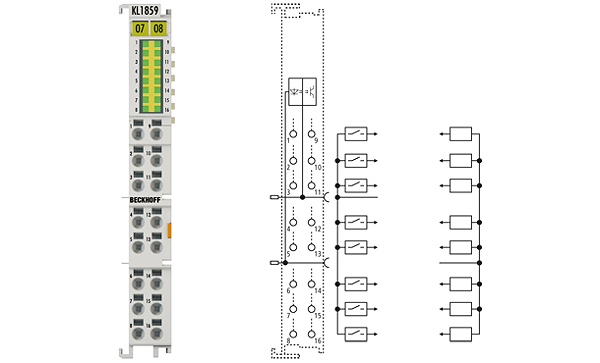

Beckhoff KL1859
KL1859 | HD Bus Terminal, 8-channel digital input + 8-channel digital output 24 V DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The digital KL1859 Bus Terminal combines eight digital inputs and eight digital outputs in one device. The inputs have a filter of 3.0 ms. The outputs process load currents up to 0.5 A, are short-circuit-proof and protected against polarity reversal. The signal states are displayed by LEDs.
Technical parameters
| Connection technology: | 1-wire |
| Specification: | EN 61131-2, type 1/3 |
| Number of channels: | 8 inputs + 8 outputs |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0“ signal voltage: | -3…+5 V (EN 61131-2, type 1/3) |
| “1“ signal voltage: | 11…30 V (EN 61131-2, type 3) |
| Input filter: | typ. 3.0 ms |
| Input current: | typ. 3 mA (EN 61131-2, type 3) |
| Load type: | ohmic, inductive, lamp load |
| Max. output current: | 0.5 A (per channel) |
| Reverse voltage protection: | yes |
| Current consumpt. K-bus: | typ. 25 mA |
| Current consumption power contacts: | typ. 15 mA + load |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Bit width in the process image: | 8 inputs + 8 outputs |
| Configuration: | no address or configuration setting |
| Conductor types: | solid wire, stranded wire and ferrule |
| Conductor connection: | solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver |
| Rated cross-section: | solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm² |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable (see documentation) |
| Approvals: | CE, UL, Ex, GL |
