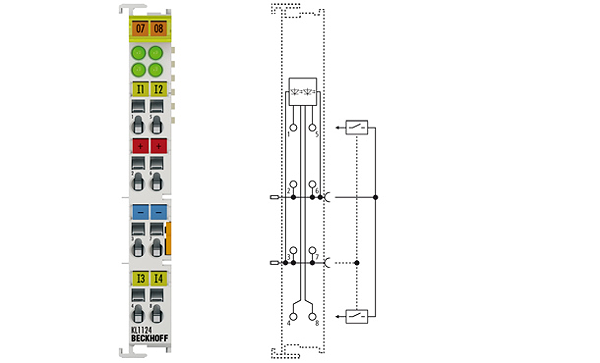

Beckhoff KL1124
KL1124 | 4-channel digital input terminal 5 V DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL1124 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes. The 5 V supply voltage can be generated with the KL9505 power supply unit terminal, and fed into the power contacts.
Technical parameters
| Connection technology: | 2-/3-wire |
| Number of inputs: | 4 |
| Nominal voltage: | 5 V DC |
| “0“ signal voltage: | < 0.8 V |
| “1“ signal voltage: | > 2.4 V |
| Input filter: | typ. 0.2 ms |
| Input current: | typ. 50 µA |
| Current consumption K-bus: | typ. 5 mA |
| Current consumption power contacts: | typ. 1 mA + load |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Bit width in the process image: | 4 inputs |
| Configuration: | no address or configuration setting |
| Special features: | supply 5 V DC via power contacts |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
