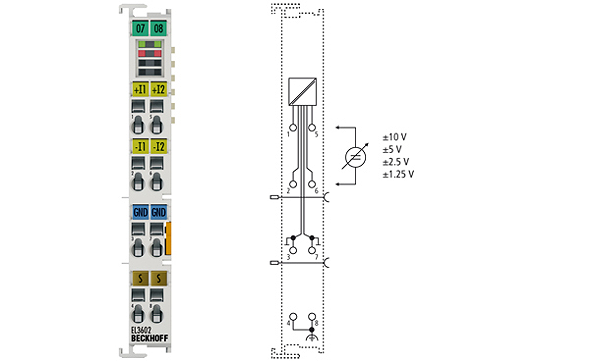

Beckhoff EL3602
EL3602 | 2-channel analog input terminal ±10 V, ±5 V, ±2.5 V, ±1.25 V, differential input, 24 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3602 analog input terminal handles signals in the ranges ±10 V, ±5 V, ±2.5 V and ±1.25 V. The voltage is digitised to a resolution of 24 bits, and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical parameters
| Number of inputs: | 2 (differential) |
| Power supply: | via the E-bus |
| Technology: | differential input |
| Signal voltage: | -10…+10 V, -5…+5 V, -2.5…+2.5 V, -1.25…+1.25 V (parameterisable) |
| Oversampling factor: | – |
| Distributed clocks: | – |
| Distributed clock precision: | – |
| Internal resistance: | > 200 kΩ |
| Input filter limit frequency: | 3 kHz |
| Common-mode voltage UCM: | 35 V max. |
| Resolution: | 24 bit (incl. sign) |
| Conversion time: | 20 ms default setting, 1…400 ms configurable |
| Input signal bandwidth: | – |
| Measuring error: | < ±0.01 % at 25 °C, 50 Hz filter (relative to full scale value) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 190 mA |
| Crosstalk attenuation: | > 60 dB |
| Special features: | various filter times, limit value monitoring, high precision |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex |
| Ex-Kennzeichnung: | II 3 G Ex nA IIC T4 Gc |
