Beckhoff EL3201

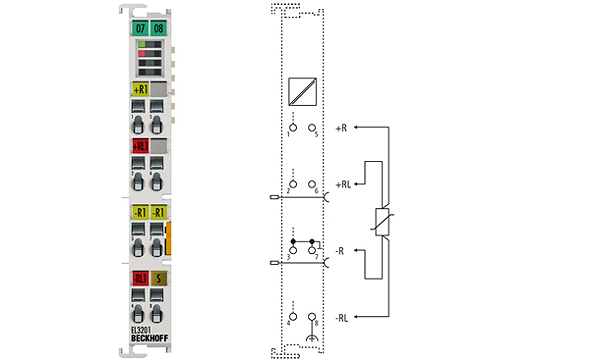

EL3201 | 1-channel input terminal PT100 (RTD) for 2-, 3- or 4-wire connection
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3201 analog input terminal allows resistance sensors to be connected directly. The EtherCAT Terminal circuitry can operate 2-, 3- and 4-wire sensors (also in the 2-channel version EL3202-0010). A microprocessor handles linearisation across the whole temperature range, which is freely selectable. The EtherCAT Terminal’s standard settings are: resolution 0.1 °C in the temperature range of PT100 sensors in 3-wire connection. The EtherCAT Terminals indicate their signal state by means of light emitting diodes. Sensor malfunctions such as broken wires are indicated by error LEDs.
Technical parameters
| Number of inputs: | 1 |
| Power supply: | via the E-bus |
| Distributed clocks: | – |
| Input filter limit frequency: | typ. 1 kHz |
| Sensor types: | PT100, PT200, PT500, PT1000, Ni100, Ni120, Ni1000 resistance measurement (e.g. potentiometer, 10 Ω…1/4 kΩ), KTY sensors (types see documentation) |
| Connection method: | 2-, 3-, 4-wire |
| Resolution: | 0.1 °C per digit |
| Conversion time: | approx. 24 ms default setting, 4…500 ms configurable |
| Temperature range: | -200…+850 °C (PT sensors); -60…+250 °C (Ni sensors) |
| Measuring current: | < 0.5 mA (load-dependent) |
| Measuring error: | < ±0.5 °C for PT sensors |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 190 mA |
| Bit width in the process image: | 1 x 32 bit RTD input |
| Special features: | integrated digital filter, limit value monitoring, variable connection technology |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
