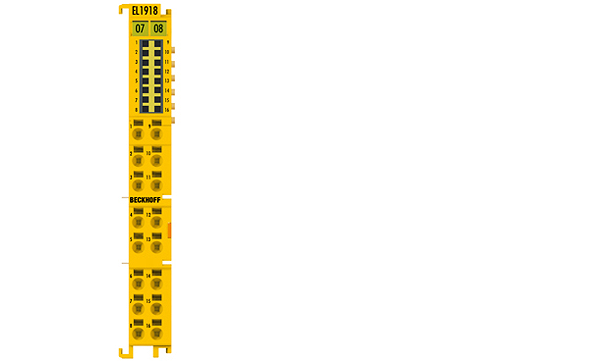

Beckhoff EL1918
EL1918 | 8-channel digital input terminal, TwinSAFE, 24 V DC, TwinSAFE Logic
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL1918 TwinSAFE EtherCAT Terminal is a digital input terminal for sensors with potential-free contacts for 24 V DC. The EtherCAT Terminal has eight fail-safe inputs. The EL1918 integrates a programmable TwinSAFE Logic enabling the implementation of safety applications directly in the terminal. Depending on the application, the safety-oriented information can be pre-processed directly in the terminal so that the central TwinSAFE Logic need only process the information that is aggregated.
Technical parameters
| Connection technology: | 1-/2-wire |
| Specification: | link unit between safe input and output signals |
| Number of inputs: | 8 |
| Protocol: | TwinSAFE/Safety over EtherCAT |
| Fault response time: | ≤ watchdog time (parameterisable) |
| Current consumption power contacts: | see documentation |
| Current consumption E-bus: | typ. 165 mA |
| Installation position: | horizontal |
| Safety standard: | EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
| Weight: | approx. 50 g |
| Protection class: | IP 20 |
| Approvals/markings: | Overview of TwinSAFE Certifications (PDF) |
| Download EtherCAT slave information (ESI): | ESI config file EL19xx (ZIP) |
