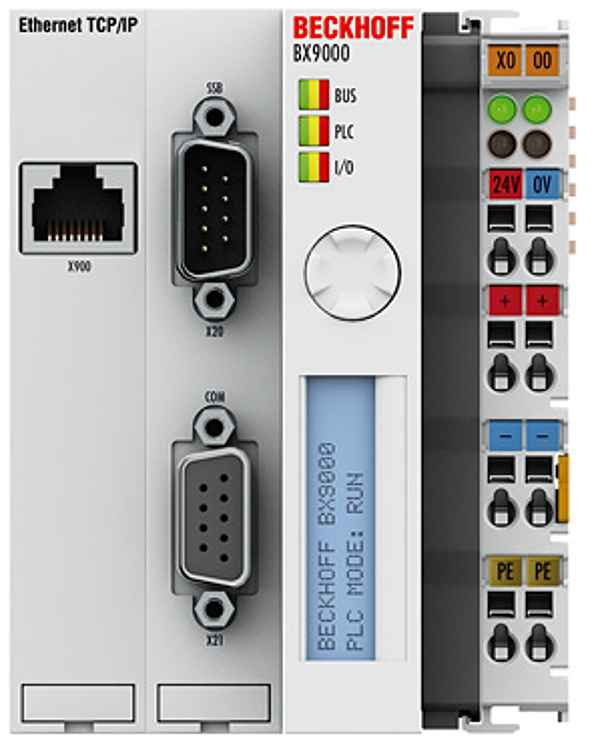

Image copyright: Beckhoff
Beckhoff BX9000
BX9000 | Ethernet TCP/IP Bus Terminal Controller
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The BX9000 Bus Terminal Controller has an Ethernet slave/master interface. The controller has automatic baud rate detection up to 100 Mbaud. The address can optionally be entered via DHCP, BootP, ARP or with the joystick switch. Up to 2 kbytes of input and 2 kbytes of output can be exchanged with the controller. The ModbusTCP and the ADS/TCP and ADS/UDP protocols are implemented.
Technical parameters
| Programming: | via TwinCAT and programming interface or Ethernet |
| Program memory: | 256 kbytes |
| Data memory: | 256 kbytes |
| Remanent data: | 2 kbytes |
| Persistent data: | 1 kbyte |
| Runtime system: | 1 PLC task |
| PLC cycle time: | approx. 1 ms for 1,000 instructions (without I/O cycle, K-bus) |
| Programming languages: | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
| Online change: | yes |
| Up/down load code: | yes/yes |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
