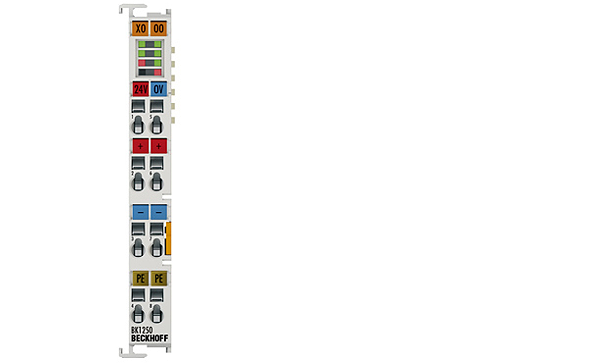

Beckhoff BK1250
BK1250 | “Compact” coupler between E-bus and K-bus Terminals. BK1250 | “Compact” Coupler between E-bus and K-bus Terminals
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The BK1250 is a “Bus Coupler in terminal housing” for mixed application of EtherCAT Terminals (ELxxxx) and standard Bus Terminals (KLxxxx) in a bus station. It enables implementation of compact and cost-effective control solutions. The wide range of Bus Terminals can thus be optimally combined with the communication speed and large bandwidth of EtherCAT Terminals. Up to 64 Bus Terminals (with K-bus extension up to 255) can be connected to a BK1250. The Bus Coupler recognises the connected Bus Terminals and automatically allocates them into the EtherCAT process image.
Technical parameters
| Number of Bus Terminals: | 64 (255 with K-bus extension) |
| Number of Bus Terminals: | 64 (255 with K-bus extension) |
| Max. number of bytes fieldbus: | 1024 byte input and 1024 byte output |
| Analog peripheral signals: | 256 inputs/outputs |
| Protocol: | EtherCAT |
| Configuration possibility: | via KS2000 or EtherCAT (ADS) |
| Data transfer rates: | 100 Mbaud |
| Bus interface: | via E-bus contacts |
| Power supply: | 24 V DC (-15 %/+20 %) |
| Input current: | 70 mA + (total K-bus current)/4, 200 mA max. |
| Starting current: | approx. 2.5 x continuous current |
| Recommended fuse: | ≤ 10 A |
| Current supply K-bus: | 500 mA |
| Power contacts: | 24 V DC max./10 A max. |
| Weight: | approx. 55 g |
| Weight: | approx. 55 g |
| Relative humidity: | 95 %, no condensation |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. class/installation pos.: | IP 20/variable |
| Protect. class/installation pos.: | IP 20/variable |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
