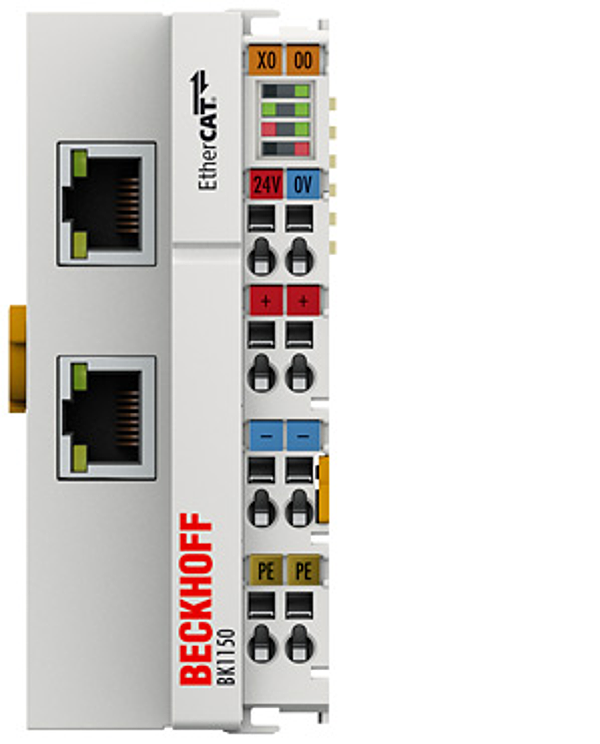

Beckhoff BK1150
BK1150 | EtherCAT “Compact” Bus Coupler
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The BK1150 Bus Coupler connects the EtherCAT real-time Ethernet system to the modular extendable KL/KS electronic terminal blocks at fieldbus level. A unit consists of a Bus Coupler, any number of terminals from 1 to 64 (with K-bus extension: 255) and a KL9010 bus end terminal.
Technical parameters
| Number of I/O stations: | 65,535 |
| Number of I/O points: | depending on controller |
| Data transfer medium: | Industrial Ethernet cable, screened, min. Cat.5 |
| Max. cable length: | 100 m (100BASE-TX) |
| Data transfer rates: | 100 Mbit/s |
| Data transfer time: | typ. 0.01 ms in the case of 10 modules for 32 bit inputs and outputs each (without K-bus run-time) |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
