ABB 2CPX042258R9999

MD100

MD100 Mod for fuse switch d ABB 1PW

Description

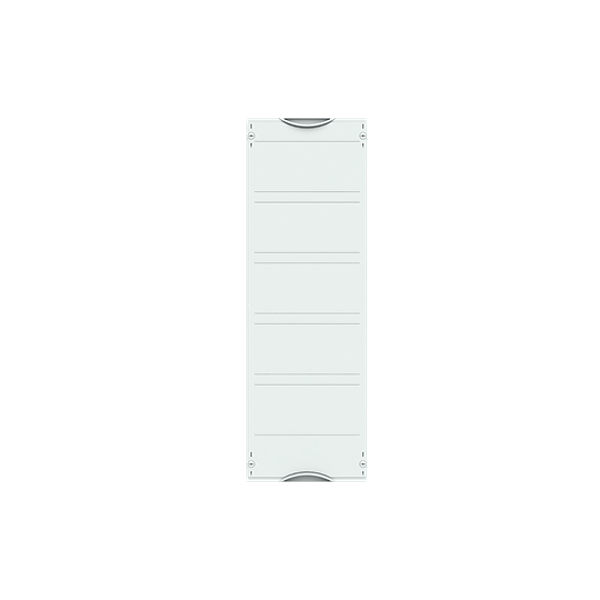

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 185 mm NH-disconnector, Ratchet unit 5 GU = 750 mm, panel width 1 = 250 mm, 60 Space units, , usuable width of 150 mm, unequipped for the installation of 4 NH-fuse disconnector NH1 till NH3, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
