Product
ABB
2CPX042165R9999
MBC104VS
Request a Quote
Image copyright: ABB
ABB 2CPX042165R9999
MBC104VS

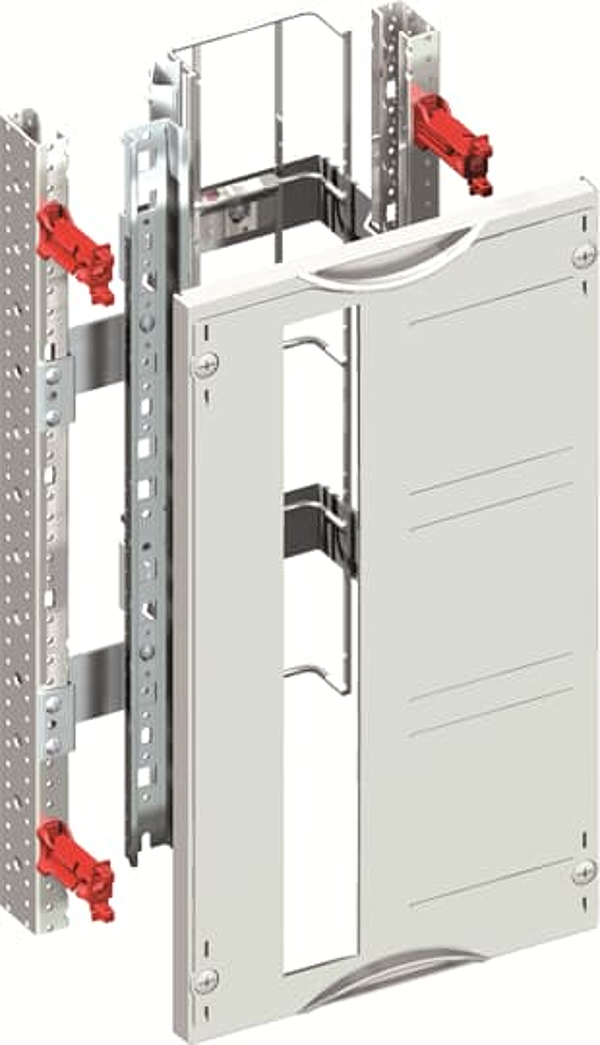

MBC104VS Set Smissline Module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Interior fitting module, CombiLine, Modular distribution panel not assembled, for SMISSLINE TP base unit vertikal, Ratchet unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, assembled with DIN rail 35 x 15 mm with perforation for wire holders, for Socket base length 1 x 30 space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617421658 |
| Weight: | 3.24 kg |
| Length: | 0.60 m |
| Width: | 0.25 m |
| Height: | 0.055 m |
