ABB 2CPX041802R9999

MBL35

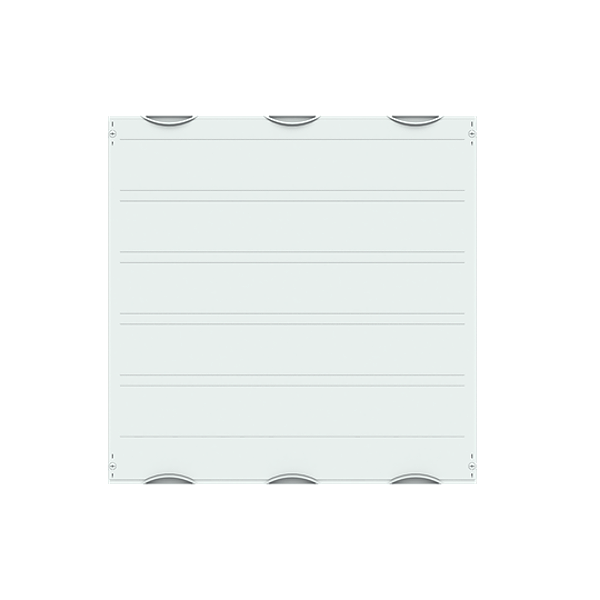

MBL35 Set Switch-Strip Module

Description

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 185 mm NH-switch disconnector, Ratchet unit 5 GU = 750 mm, panel width 3 = 750 mm, 180 Space units, , usuable width of 600 mm, unequipped for the installation of 12 NH-fuse disconnector NH1 till NH3, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX523, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 625 mm
