Product
ABB
2CPX041417R9999
MA290T
Request a Quote
Image copyright: ABB
ABB 2CPX041417R9999
MA290T

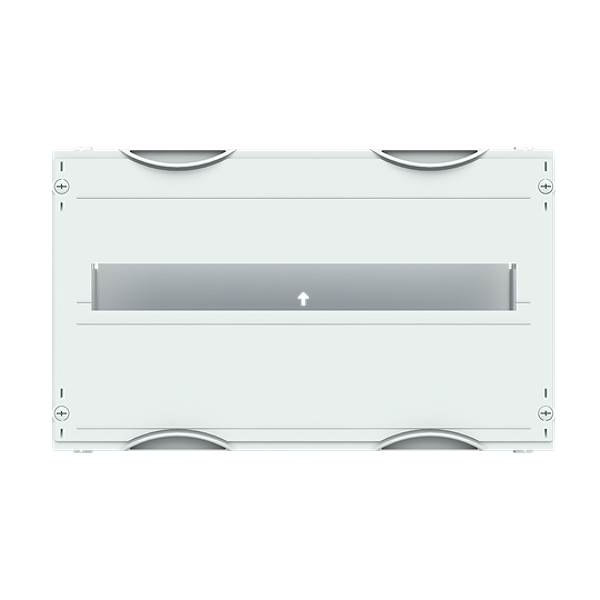

MA290T Module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax, Ratchet unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, , usuable width of 449 mm, unequipped for the installation of 2 MCCB XT1, XT3, for busbar system -pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 215 mm
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617414179 |
| Weight: | 1.63 kg |
| Length: | 0.30 m |
| Width: | 0.50 m |
| Height: | 0.215 m |
