Product
ABB
2CPX041122R9999
MA292T
Request a Quote
Image copyright: ABB

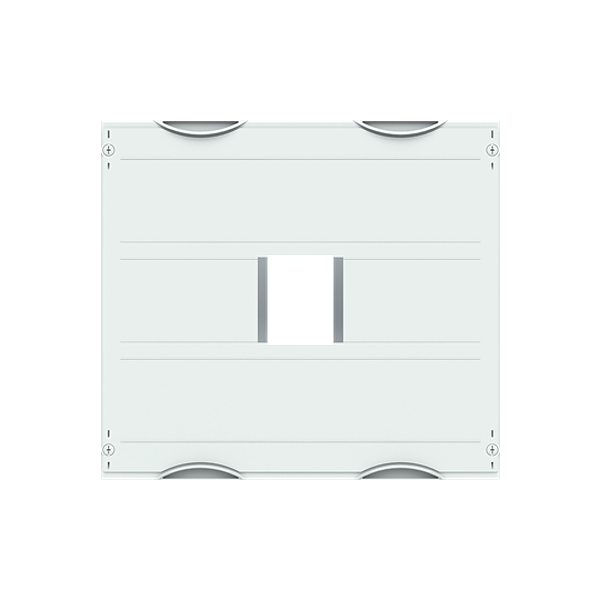

ABB 2CPX041122R9999
MA292T
MA292T Module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax, Ratchet unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 186 mm, unequipped for the installation of 1 MCCB T5 / XT5, for busbar system 3.4-pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 215 mm
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617411222 |
| Weight: | 4.08 kg |
| Length: | 0.45 m |
| Width: | 0.50 m |
| Height: | 0.215 m |
