ABB 2CPX035876R9999

KS210Z

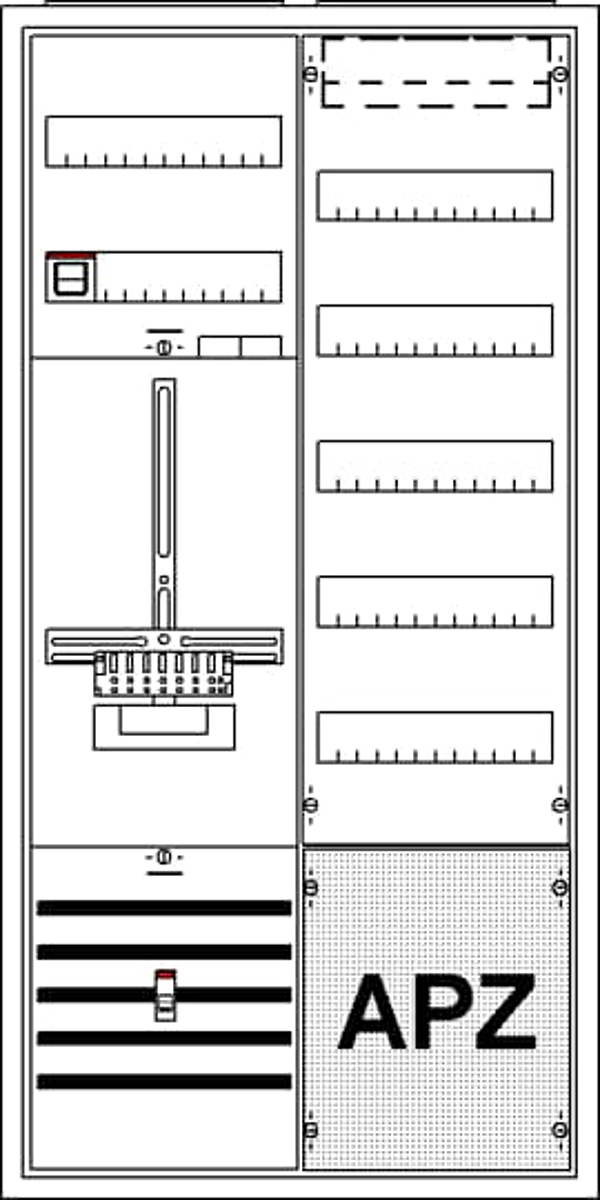

KS210Z Meter Cabinet Compl. A27

Description

Meter board, series ComfortLine A, fully assembled cabinet, with Metering cross, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, IK code 07, rated current 63 A, powder-coated, in RAL 9016, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard closure, door opening angle 120 degree, door hinge right or left, rear wall out of sheet steel / plastic, cable entry on top via membrane flange mounted, on bottom via 2x cable entry flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1100 x 550 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, with metering quick termin and sealable cover, net side compartment, meter space: with busbar, pre-assembled for main switch SH, incoming terminals up to 35 mm², system side compartment, meter space: Switch 63 A/3-pole lockable and main branch terminal, Number of meter spaces single tariff 1, Number of distributor rows 5, Ratchet unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, 90 degree press and turn closure, RAL 7035
