ABB 2CPX035745R9999

KA2243T

KA2243T Meter Board Compl. 9R

Description

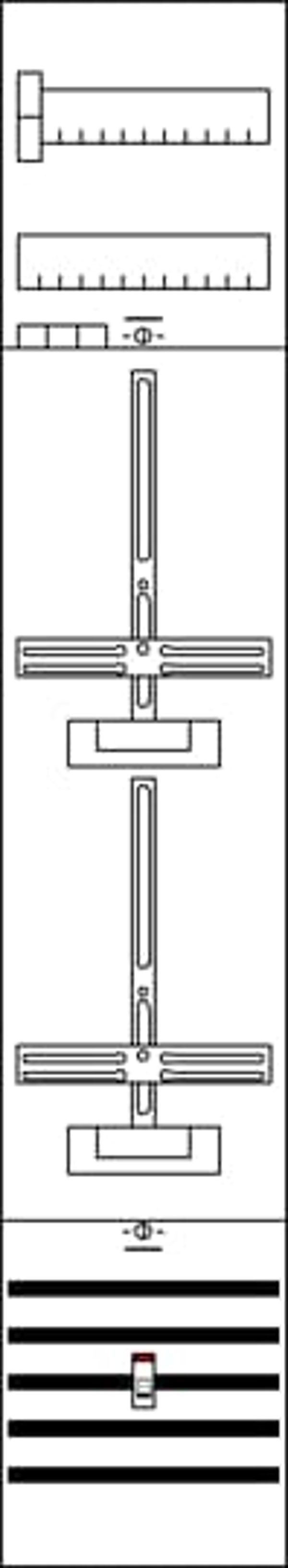

Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, rated current 63 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, net side compartment, SG space: with busbar, system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 1, Number of SG spaces 1, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, 90 degree press and turn closure, RAL 7035
