ABB 2CPX035714R9999

KA4092

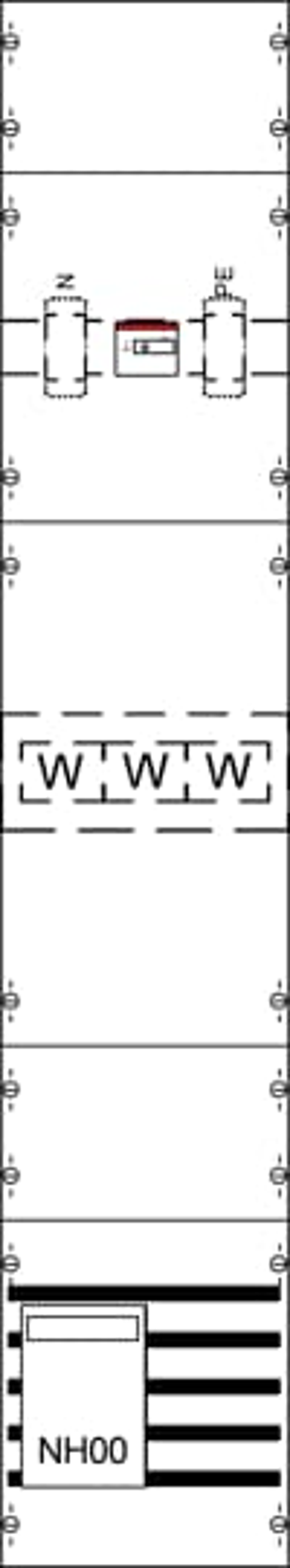

KA4092 Transformerboard OH5

Description

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 125 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 50 qmm, N+PE 2 Connections N+PE 95qmm, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
