ABB 2CPX035004R9999

KA4604

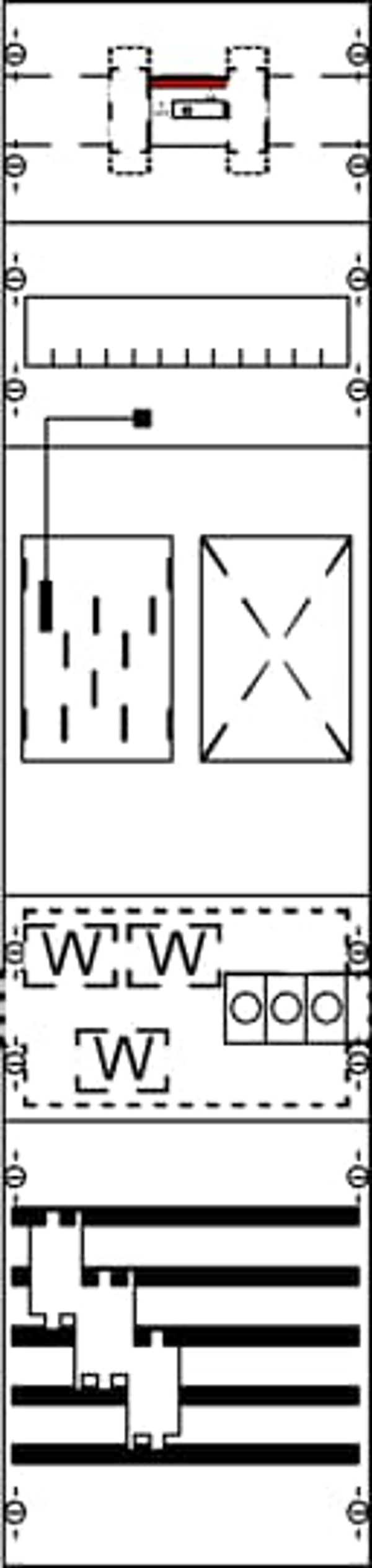

KA4604 Transformer meterboard OH3

Description

Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, rated current 80 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
