ABB 2CPX032960R9999

KS4276

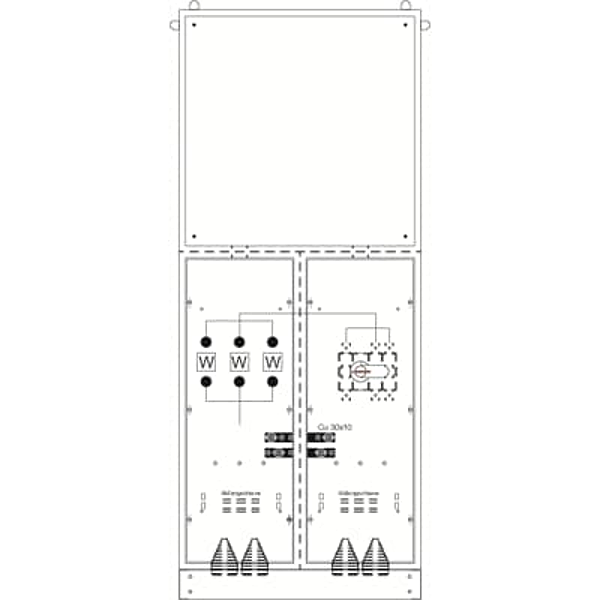

KS4276 Transformer and meter cabinet

Description

Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, degree of protection IP54, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1850 x 800 x 350, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Meter replacement plate KF140SB or KF142, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Note: metering transformer conversion board KF140SB or KF142 should be ordered seperately, Ratchet unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, RAL 7035
