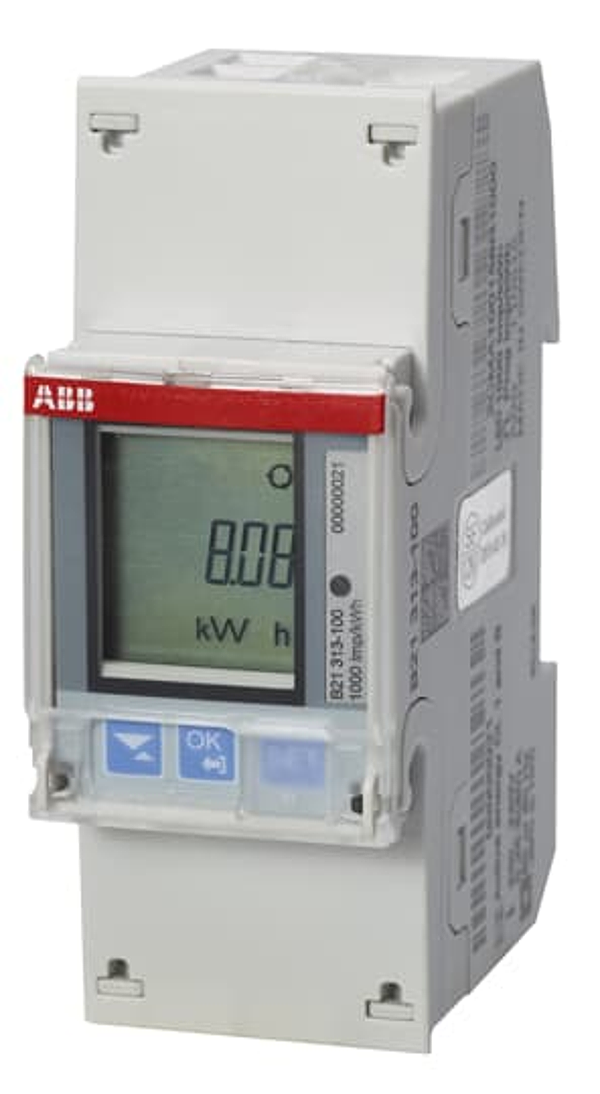

Article image 2CMA100156R1000

ABB 2CMA100156R1000

B21 313-100

Active Energy Class ±1% (or B for MID meters). Reactive Energy Class ±2%.;

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active and reactive energy. Import and export of energy in different registers and one total. Resettable register for intermediate values. Up to four tariffs. Two outputs and inputs for pulses or alarm etc. M-Bus communication.Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.

Logistic parameters

ECCN:
Country of Origin: IT
EAN:
Weight: 0.15 kg
Length: 0.065 m
Width: 0.035 m
Height: 0.0265 m
