ABB 2CDG240019R0011

SSM/A

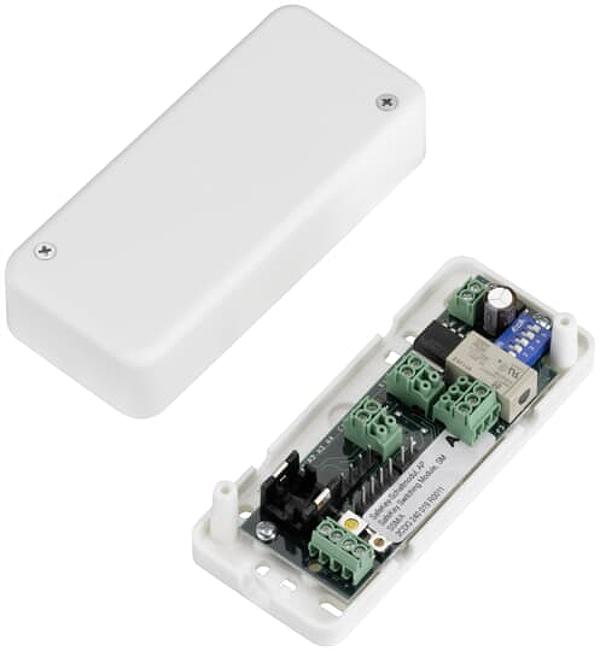

SSM/A SafeKey Switching Module, Surface Mounted

Description

Is used for an easy connection and evaluation of the SafeKey Wall Reader with or without keypad (WEL or WELT). Applicable for potential-free switching of electrical components up to 5 A at a max. voltage of 12...24 V DC/AC, i.e. electrical door opener or garage doors, or to set/unset a KNX security system via the connection to a Security Terminal MT/x. The module can be used for surface mount. A 12 V power supply is required.
