ABB 2CDG110209R0011

FCC/S1.4.1.1

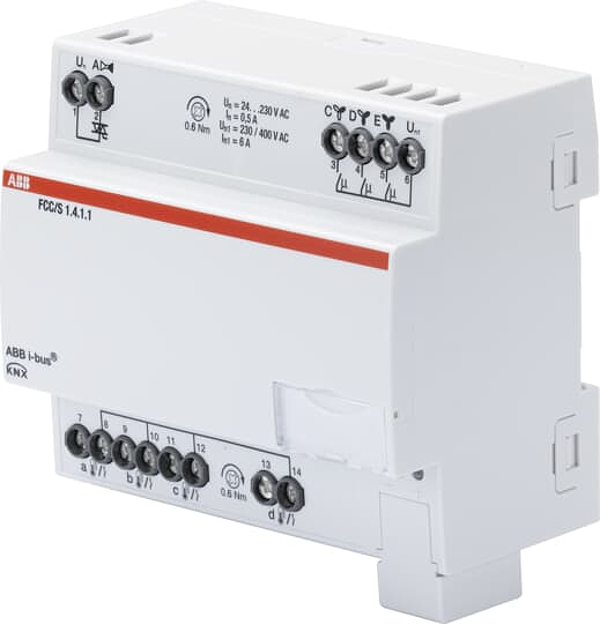

FCC/S1.4.1.1 Fan Coil Controller, PWM, 3-stage, MDRC

Description

For the control of fan coil units. Via one electronic output, a thermoelectric valve drive can be controlled for heating and cooling. For the fan control the devices features three relay outputs. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
