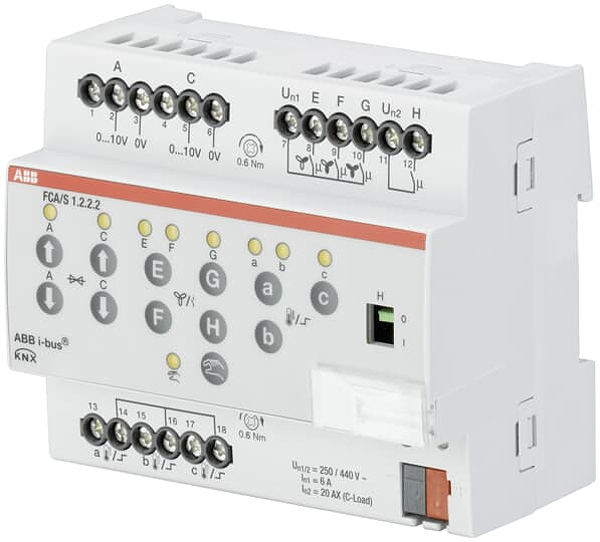

Article image 2CDG110193R0011

ABB 2CDG110193R0011

FCA/S1.2.2.2

FCA/S1.2.2.2 Fan Coil Actuator, 0-10 V, Manual Operation, MDRC

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Controls typical fan coil units by two analogue outputs for 0 - 10 V valve drives and a 3 channel output for fan with up to 3 stages. A additional load (up to 16 A) like a auxiliary heating can be controlled by a switch output. Window sensors, condensed water sensors and temperature sensors can be connected to the three universal inputs. The device has a manual operation for quick maintenance. The Fan Coil Actuator supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4016779942171
Weight: 0.30 kg
Length: 0.113 m
Width: 0.108 m
Height: 0.065 m
