ABB 2CDG110191R0011

WS/S4.1.1.2

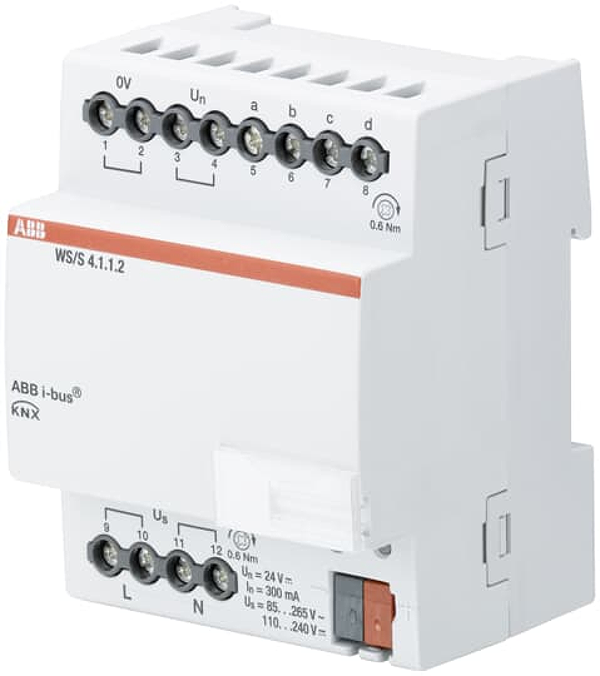

WS/S4.1.1.2 Weather Station, 4-fold, MDRC

Description

The weather station is used to detect and process 4 independent input signals acc. DIN IEC 60381 (0-1 V, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA, 0-1000 Ohm, PT100, PT1000 and floating contacts). Integrated power supply to generate the 24 V DC voltage for external sensors. The device can be operated with a suppy voltage of 115 to 230 V, 50/60 Hz. Maximum 300 mA supplied on the complete voltage range. Application software adjusted for detection and processing of weather data. All common weather sensors for wind speed, wind direction, rain, amount of rain, brightness, light intensity, twilight, air pressure, humidity or temperature can be connected to the device.
