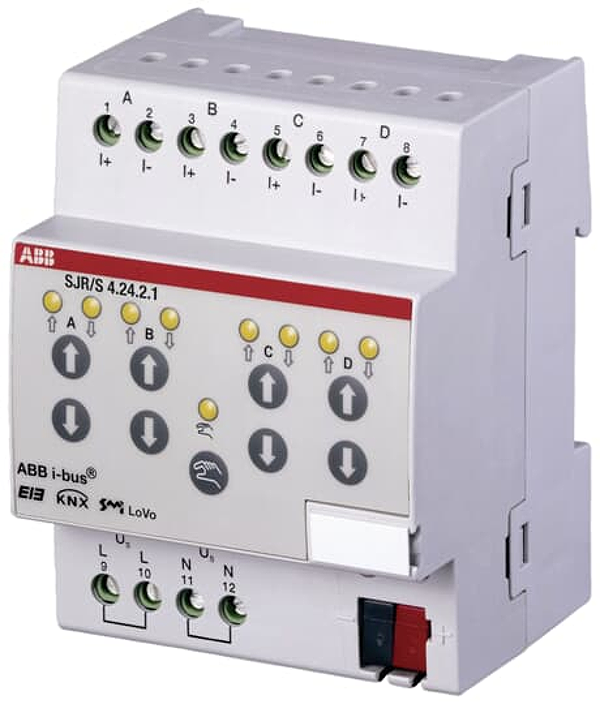

Article image 2CDG110143R0011

ABB 2CDG110143R0011

SJR/S4.24.2.1

SJR/S4.24.2.1 SMI Blind/Roller Shutter Actuator, LoVo, 4-fold, MDRC

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

It controls four independent groups (broadcast) with up to four SMI (Standard Motor Interface) LoVo drives for positioning blinds, roller shutters, awnings and other shading products. Status signals (motor fault, direction of movement) can also be sent from the SMI drive on the bus. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 0.21 kg
Length: 0.0645 m
Width: 0.072 m
Height: 0.09 m
