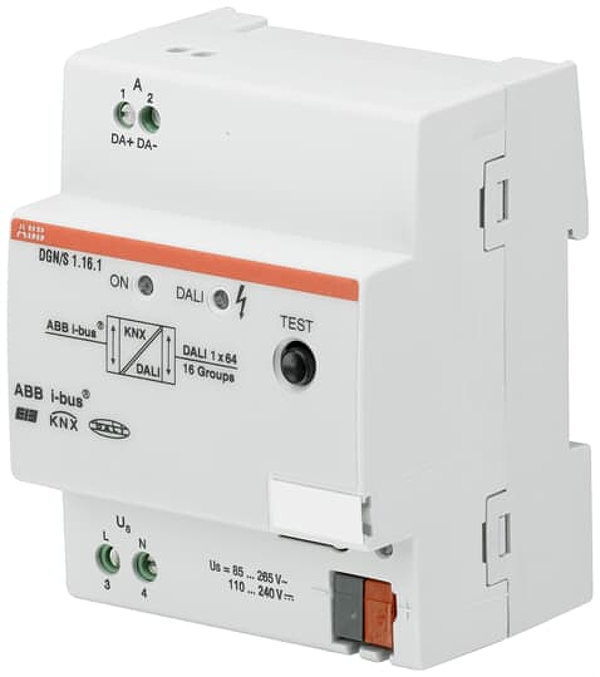

Article image 2CDG110142R0011

ABB 2CDG110142R0011

DGN/S1.16.1

DGN/S1.16.1 DALI Gateway Emergency Light, 1-fold, 16 Groups, MDRC

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

For controlling DALI devices via the ABB i-bus®. Up to 64 DALI Slaves can be connected. Self contained emergency converter acc. EN 62386-202 will be supported. Control and status feedback is carried out via KNX with 16 lighting groups. By means of KNX and emergency converter different emergency tests (e.g. function and duration test) can be triggered. Feedback is sent. Slave-, staircase- and sequencer- function are integrated. For an individual change of the DALI address or group assignment a separate Software-Tool is available.

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4016779845564
Weight: 0.19 kg
Length: 0.077 m
Width: 0.072 m
Height: 0.065 m
