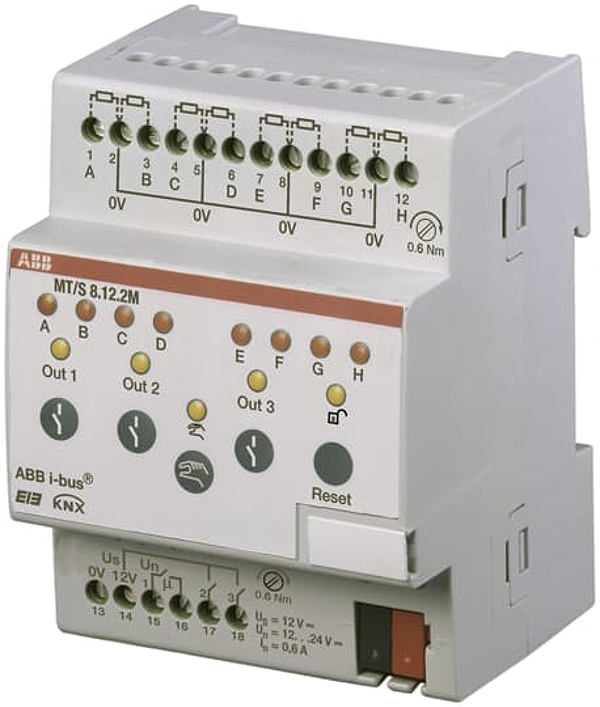

Article image 2CDG110110R0011

ABB 2CDG110110R0011

MT/S8.12.2M

MT/S8.12.2M Security Terminal, 8-fold, MDRC

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Used for the monitored connection of sensors from security technology (e.g. magnetic contacts or glass-breakage sensors) to the ABB i-bus® KNX. The device has eight inputs (”zones“) available and can be used as a stand-alone security system or in combination with the security module or intrusion alarm panel with KNX interface. 12 V DC SELV power supply required, e.g. NTU/S 12.2000.1. Typical applications are door and window surveillance, glas-breakage detection as well as area surveillance.

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 0.15 kg
Length: 0.0645 m
Width: 0.072 m
Height: 0.09 m
