ABB 2CDG110028R0011

JA/S4.SMI.1M

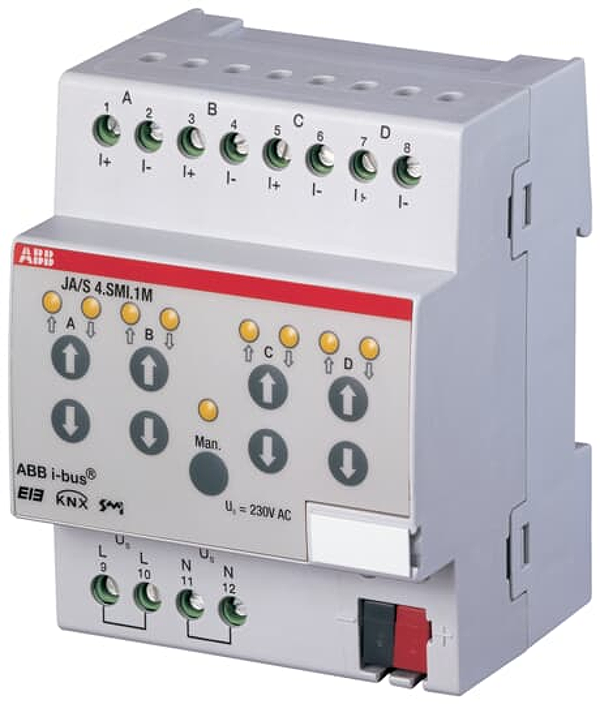

JA/S4.SMI.1M SMI Shutter Actuator, 4-fold, Manual Operation, MDRC

Description

It controls four independent groups (broadcast) with up to four SMI (Standard Motor Interface) drives (230 V) for positioning blinds, roller shutters, awnings and other shading products. Status signals (motor fault, direction of movement) can also be sent from the SMI drive on thebus. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.
