Rechner Sensors KA1633

KS-801-26/203-IL4-G1/2-PEEK/VAb-Y3-ETW-HP

Описание

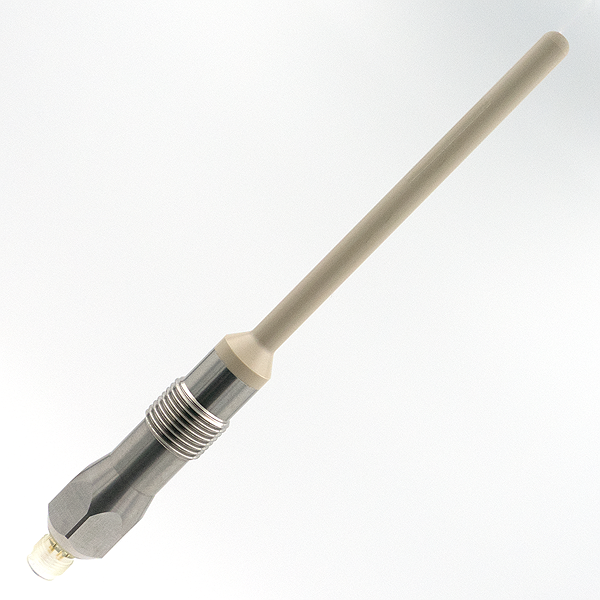

LevelMaster. Capacitive Sensors. Model G 1/2“. For level control of conductive and/or viscous liquids or pastes, for instance oil, water, ketchup or honey. Ideal for level control in the Food Industry or Pharmaceutical Industry. Housing material: Stainless steel VA No. 1.4305 (AISI 303). Adjustment of the sensitivity with ETW- Function (EasyTeach by wire). With flange connector M 12 x 1. Welding sockets and Varivent adapter available for EHEDG conform mounting. Highlights:. EHEDG conform. Measurement is independent of the mounting position. Analogue measuring range max. 120 mm. Permitted pressure on the active area: 10 bar
